UPS5000-H | Modular UPS | Huawei Digital Power

High density & efficiency

Predictive maintenance

Simple architecture

High reliability

High Density & Efficiency

01. Efficient02. Compact

02. Compact

100 kVA@3U，One GW per cabinet

01. Efficient

Up to 97% link efficiency in online double-conversion mode, ensuring high efficiency even at low load; up to 99.1% link efficiency in S-ECO mode

02. Compact

100 kVA@3U，One GW per cabinet

01. Efficient

Up to 97% link efficiency in online double-conversion mode, ensuring high efficiency even at low load; up to 99.1% link efficiency in S-ECO mode

Predictive Maintenance

iPower full-link monitoring, turning passive alarm response into AI-based predictive maintenance; source-share mode that supports intelligent peak shaving, leveraging TOU prices

Intelligent copper bar temperature detection

01. Intelligent copper bar temperature detection02. Intelligent component life prediction03. Intelligent peak shaving

03. Intelligent peak shaving

Power supply scheduling based on electricity price differences, reduing OPEX

01. Intelligent copper bar temperature detection

Real-time temperature monitoring at key nodes of copper bars, ensuring timely warning of faults

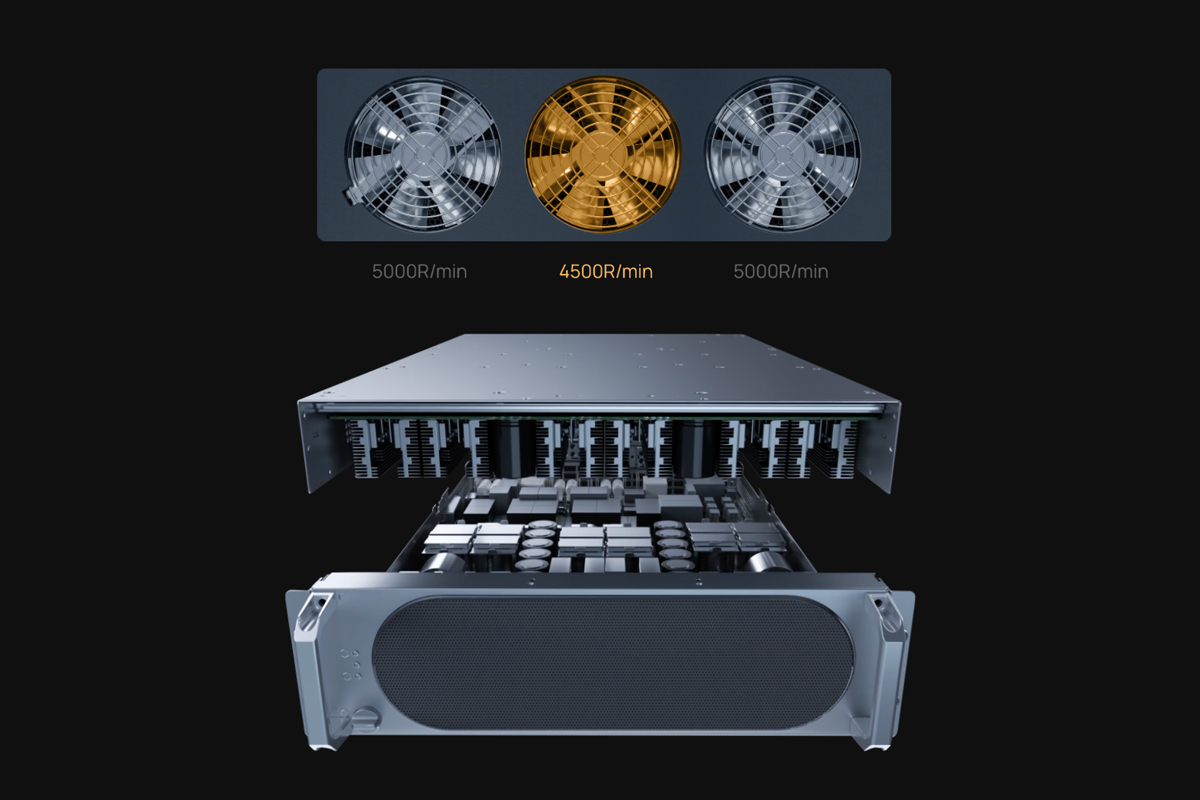

02. Intelligent component life prediction

AI-powered monitoring of the capacitance and fan speed, predicting component lifespan one year in advance

03. Intelligent peak shaving

Power supply scheduling based on electricity price differences, reduing OPEX

01. Intelligent copper bar temperature detection

Real-time temperature monitoring at key nodes of copper bars, ensuring timely warning of faults

Simple Architecture

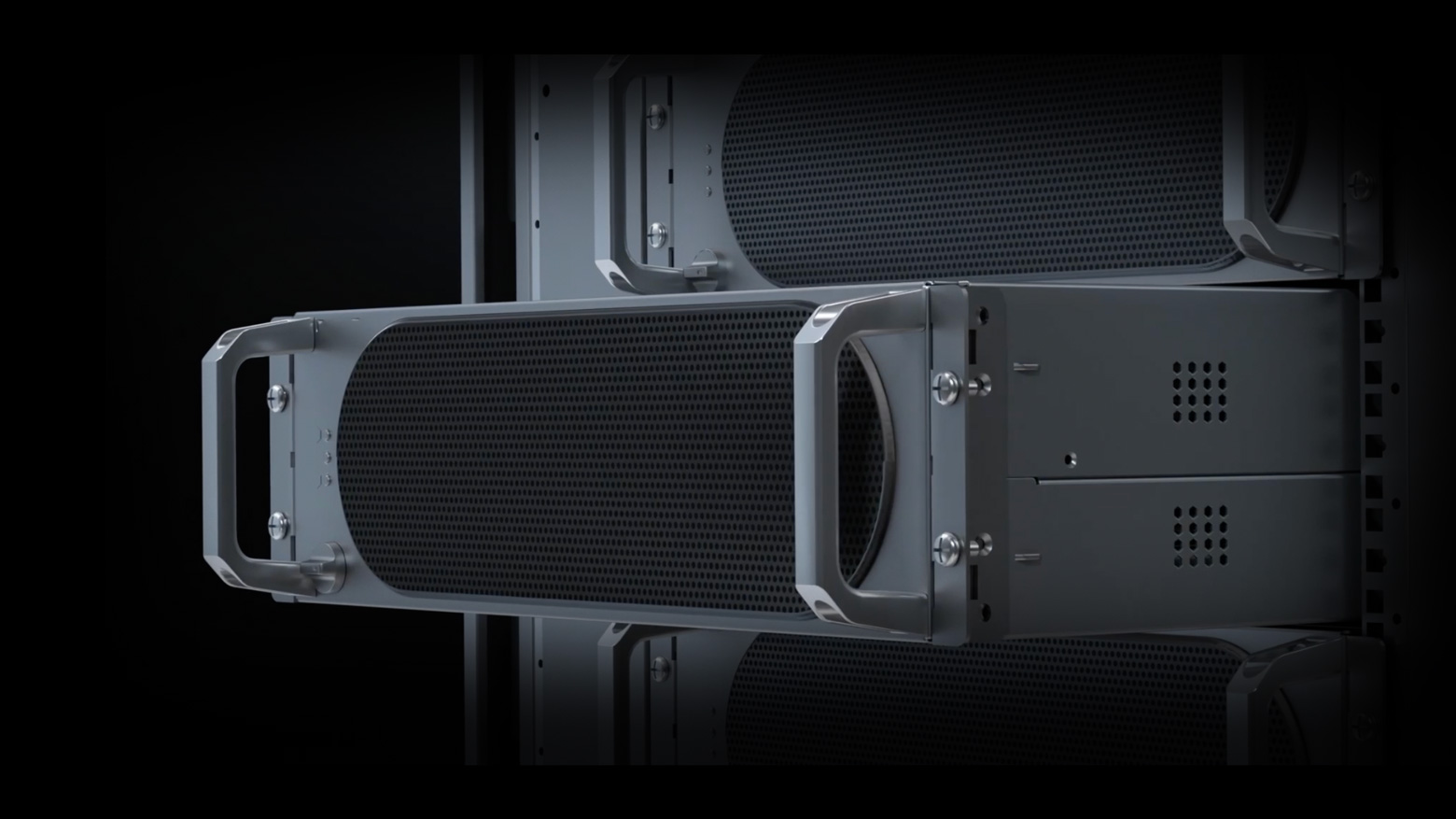

Fully modular UPS with hot-swappable power, bypass, and control modules, shortening fault recovery time from 8 h to 5 min

8hours

5mins

High Reliability

Redundancy design for all key components, eliminating risks caused by single points of failure; 0 ms switchover between all modes, ensuring stable and uninterruptible power supply

Success Stories

Decarbonizing Data Centers: Huawei Enables China Unicom Guangzhou to Build Energy-Efficient and Eco-friendly Data Centers

It is estimated that this solution will save 13.245 million kWh of electricity and reduce carbon emissions by 7695 tons annually

Technical Specifications

Series UPS5000-H (380/400/415 V) UPS5000-H (200/208/210 V) UPS5000-H (480 V)

Capacity 400/500/600/800/1200/1600 kVA 300 kVA 800 kVA

Input Voltage 380/400/415 V 200/208/210 V 480 V

Module Specifications 100 kW/3U　 50 kW/3U 100 kW/3U

Output Power Factor 1 1 1

Efficiency (Double Conversion Mode） Normal mode: up to 97% S-ECO mode: up to 99% up to 94.5% up to 97%

Dimensions (W×D×H, mm) 400/500/600 kVA ：800×1000×2000 800 kVA ： 1600×1000×2000 1200 kVA ：1600×1000×2200 1600 kVA ：2400×1000×2200 800×1000×2000 1600×1000×2000
